OEM Heat Exchanger Gasket

Changzhou Victory Technology Co., LTD
Contact Now

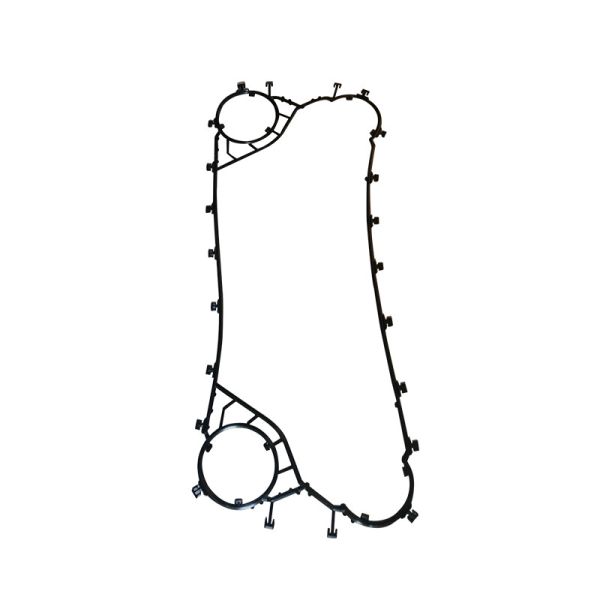

OEM Heat Exchanger Gasket

Brand Name : Victory

Model Number : GEA Series

Certification : ISO SGS

Place of Origin : China

MOQ : 100pcs

Price : 100 - 5000pieces $5-10

Payment Terms : T/T, L/C, Western Union,

Supply Ability : 500000pcs per month

Delivery Time : 15 days

Packaging Details : Polywood Box

Advantage : Factory sell with competative Price

Application : Heat exchanger sealing

Compatibility : Compatible with various fluids

Corrosion Resistance : High

Gasket Center Size : 870*122mm

Gaskets Material : NBR, HNBR,EPDM,VITON

Hnbr : Heat Resistant up to 140°c

Max Temperature : 220 ℃

Origin : China

Plate Material : 316L,Titanium,SS304,254SMO,Nickel

Plate Shape Size : 978*232mm

Pressure Rating : Up to 1500 psi

Strength : Avoid cross contamination

Thickness Of Plate : 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm

Weight : STANDARD

Contact Now

Product Description

Heat Exchanger Gasket:

Variety OEM Plate m6 m10 m15 m20 heat exchanger plate and seals gasket Rubber Seals Gasket

Heat exchanger gaskets are commonly used in various applications where heat exchangers are employed, such as in HVAC systems, chemical processing, power generation, and food and beverage production.

The function of a heat exchanger gasket is to provide a tight and secure seal between the heat exchanger plates, preventing fluid leakage and ensuring efficient heat transfer. The gasket helps to maintain the separation between the two fluid streams within the heat exchanger, preventing mixing and contamination.

Heat exchanger gaskets are typically made from materials that can withstand the operating conditions of the heat exchanger, including temperature, pressure, and compatibility with the fluids being processed. Common materials for heat exchanger gaskets include elastomers such as EPDM, Nitrile (NBR), and Viton, as well as non-asbestos materials for high-temperature applications. The choice of gasket material depends on the specific requirements of the heat exchanger and the fluids being handled.

Brand/Maker Model
TRANTER GC008,GL13,GC16,GX18,GX26,GX42,GX51,GX60,GX64,GX85,GX91,GX100,GX140,GX145,GX180,GC16,GC26,GC42,GC51

Item plate heat exchanger gasket model list
Brand Victory
Material NBR HNBR EPDM HEPDM VITON FKM Silicone/CR/Neoprene
MOQ 1 set
Package carton
Warranty one year
OEM Supply
Material applicable temp℃ fluid

Application

Material Operating Temperature Range Usage conditions
Nitrile Gaskets ≤135℃ Resistant to mineral, animal, vegetable oil and other non-polar media
Hydrogenated Nitrile Gaskets -5℃-150℃ Resistant to sulfur-containing crude oil, H2S-containing mixed media, high-temperature edible oil and other non-polar media
EPDM Gaskets ≤160℃ Resistant to hot water, water vapor, edible beverages, and high-temperature sterilization of milk
Solvent-based EPR Gaskets -20℃-150℃ Polar solvents and many other good solvents, such as lipid solvents. Dilute inorganic acids, alkalis, etc.
Universal Viton Gaskets ≤180℃ Non-polar mineral oil, lubricating oil and other alcohol-containing fuels
Special Fluorine Rubber Gaskets 30℃-130℃ Inorganic oxygen-containing acids such as high-concentration acids and bases

Q&A

Q1: Does the gaskets product come with a warranty?

A1: Gasket are consumable accessories, and the replacement cycle is generally determined according to the specific conditions of use by the customer. It is related to the use environment, medium, temperature, etc. Usually we recommend purchasing more for replacement and backup purposes.

Q2: Is there a discount available for wholesale or bulk purchases?

Answer: Yes, we offer discounts for wholesale and bulk purchases. If you are interested in purchasing a large quantity of items or engaging in wholesale business, please contact our wholesale department or customer service team for information regarding wholesale discounts and minimum purchase quantities.

OEM Heat Exchanger GasketOEM Heat Exchanger Gasket
